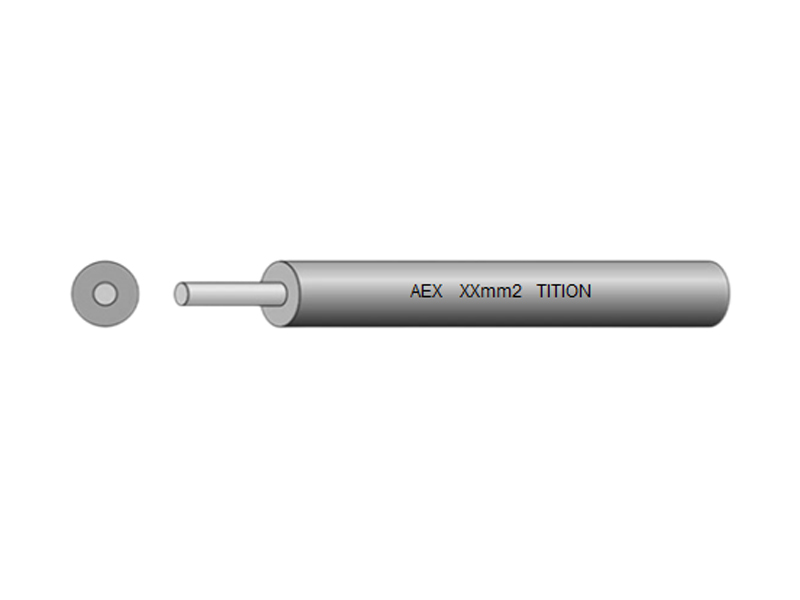

说明
额定温度：-40～120℃
额定电压：30VAC and 60VDC
标准：JASO D 611
绝缘：聚氯乙烯
垂直火焰燃烧试验符合：JASO D 611
环保要求：RoHS & REACH;
应用
适用于汽车内部电气系统用低压电线
参数
| Conductor | Insulation | Maximun Resistance at 20℃ | ||||
| 导体 | 绝缘 | |||||
| mm2 截面 | No./mm 线数/最大线径 | Nom.Dia. | Min.Thick | Maximum outer diameter | 20℃最大导体电阻 Ω/km | |
| 外径 | 最小厚度 | 最大外径 | ||||
| mm | mm | mm | ||||
| 0.5f | 20/0.18 | 1.00 | 0.32 | 2.20 | 36.7 | |
| 0.50 | 7/0.32 | 1.00 | 0.32 | 2.20 | 32.7 | |
| 0.75f | 30/0.18 | 1.20 | 0.32 | 2.40 | 24.4 | |
| 0.85 | 11/0.32 | 1.20 | 0.32 | 2.40 | 20.8 | |
| 1.25f | 50/0.18 | 1.50 | 0.40 | 2.90 | 14.7 | |
| 1.25 | 16/0.32 | 1.50 | 0.40 | 2.90 | 14.3 | |
| 2.00 | 26/0.32 | 1.90 | 0.40 | 3.40 | 8.81 | |
| 2f | 37/0.26 | 1.80 | 0.40 | 3.30 | 9.50 | |
| 3.00 | 41/0.32 | 2.40 | 0.48 | 4.10 | 5.59 | |
| 5.00 | 65/0.32 | 3.00 | 0.64 | 4.90 | 3.52 | |
| 8.00 | 50/0.45 | 3.70 | 0.64 | 5.60 | 2.32 | |
| 15f | 19/9/0.32 | 5.30 | 0.88 | 8.00 | 1.37 | |
| 20f | 19/13/0.32 | 6.50 | 0.88 | 9.30 | 0.946 | |
| 30f | 19/19/0.32 | 7.80 | 1.12 | 11.30 | 0.647 | |
| 40f | 19/26/0.32 | 9.10 | 1.12 | 12.60 | 0.473 | |
| 50f | 19/32/0.32 | 10.10 | 1.28 | 14.10 | 0.384 | |
| 60f | 19/39/0.32 | 11.10 | 1.28 | 15.10 | 0.315 | |
| 85f | 19/56/0.32 | 13.10 | 1.60 | 18.10 | 0.220 | |
| 100f | 19/71/0.32 | 14.90 | 1.60 | 19.90 | 0.173 | |
