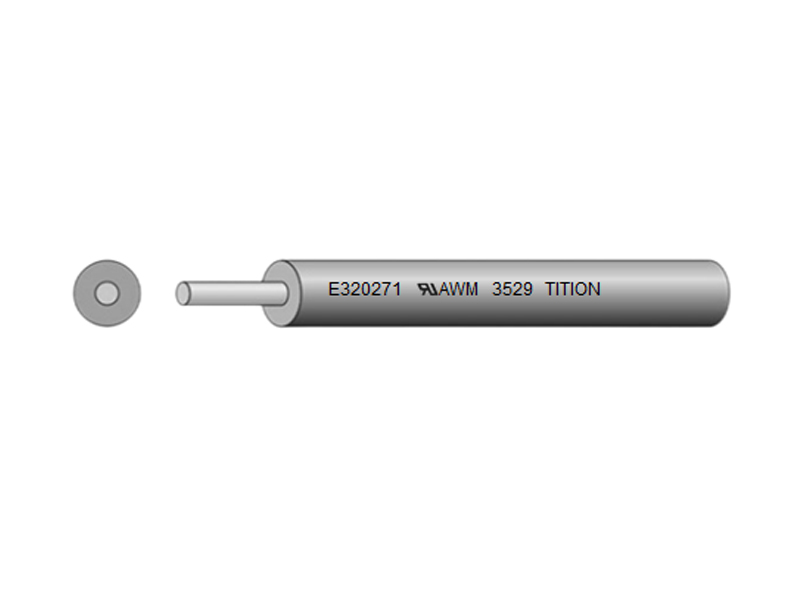

说明
额定温度：150℃
额定电压：600V
标准：UL758，UL1581及CSA22.2 No.210.2
导体:绞合铜线镀锡铜丝
绝缘:硅橡胶
通过VW-1及CUL FT1垂直耐燃连线
环保要求：RoHS & REACH;
应用
完全封闭的电器内部接线
参数
| Conductor | Insulation | Maximun Resistance at 20℃ | ||||
| 导体 | 绝缘 | |||||
| AWG | No./mm | Nom.Dia. | Nom.Thick. | Average | 20℃最大导体电阻Ω/km | |
| 线规 | 线数/线径 | 外径 | 平均厚度 | 参考外径 | ||
| mm | mm | mm | ||||
| 2/0 | 1311/0.254 | 10.80 | 2.03 | 16.00 | 0.2766 | |
| 1/0 | 1035/0.254 | 9.60 | 2.00 | 14.80 | 0.3487 | |
| 2 | 665/0.254 | 7.70 | 1.50 | 11.50 | 0.5548 | |
| 4 | 412/0.254 | 6.00 | 1.50 | 9.00 | 0.882 | |
| 6 | 260/0.254 | 4.80 | 1.50 | 8.30 | 1.403 | |
| 8 | 164/0.254 | 3.80 | 1.50 | 7.30 | 2.23 | |
| 10 | 105/0.254 | 3.01 | 1.14 | 4.80 | 3.546 | |
| 12 | 65/0.254 | 2.37 | 0.76 | 4.10 | 5.64 | |
| 14 | 41/0.254 | 1.88 | 0.76 | 3.60 | 8.96 | |
| 16 | 26/0.254 | 1.50 | 0.76 | 3.30 | 14.6 | |
| 18 | 16/0.254 | 1.17 | 0.76 | 2.90 | 23.2 | |
| 20 | 21/0.178 | 0.94 | 0.76 | 2.70 | 36.7 | |
