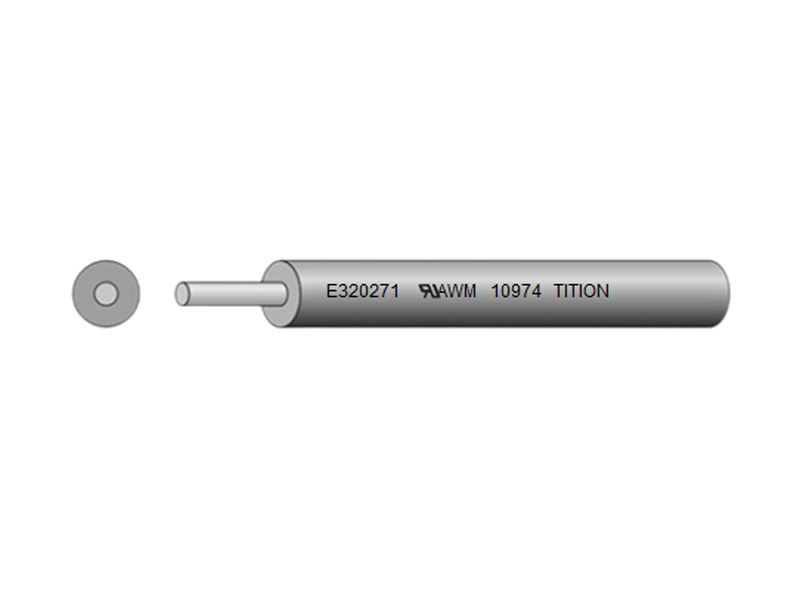

说明
额定温度：105℃
额定电压：2000V
标准：UL758，UL1581及CSA22.2 No.210.2
导体:绞合铜线镀锡铜丝
绝缘:聚氯乙烯
通过VW-1及CUL FT1垂直耐燃连线
环保要求：RoHS & REACH;
应用
电机引线和电器内部接线
参数
| Conductor | Insulation | Maximun Resistance at 20℃ | ||||
| 导体 | 绝缘 | |||||
| AWG | No./mm | Nom.Dia. | Nom.Thick. | Average | 20℃最大导体电阻Ω/km | |
| 线规 | 线数/线径 | 外径 | 平均厚度 | 参考外径 | ||
| mm | mm | mm | ||||
| 4/0 | 2128/0.254 | 13.95 | 2.00 | 18.00 | 0.1722 | |
| 3/0 | 1672/0.254 | 12.80 | 2.00 | 16.80 | 0.2194 | |
| 2/0 | 1372/0.254 | 11.58 | 2.00 | 15.60 | 0.2766 | |
| 1/0 | 1045/0.254 | 10.12 | 2.00 | 14.20 | 0.3487 | |
| 1 | 837/0.254 | 9.15 | 2.00 | 13.20 | 0.4398 | |
| 2 | 665/0.254 | 8.16 | 1.52 | 11.30 | 0.5548 | |
| 3 | 526/0.254 | 7.30 | 1.52 | 10.40 | 0.6996 | |
| 4 | 420/0.254 | 6.00 | 1.52 | 9.50 | 0.882 | |
| 6 | 266/0.254 | 4.80 | 1.52 | 8.40 | 1.403 | |
| 8 | 168/0.254 | 3.80 | 1.14 | 6.50 | 2.23 | |
| 10 | 418/0.127 | 3.12 | 0.76 | 4.90 | 3.546 | |
| 12 | 65/0.254 | 2.36 | 0.76 | 4.00 | 5.64 | |
| 14 | 41/0.254 | 1.87 | 0.76 | 3.50 | 8.96 | |
| 16 | 26/0.254 | 1.49 | 0.76 | 3.10 | 14.6 | |
| 18 | 41/0.16 | 1.17 | 0.76 | 2.80 | 23.2 | |
| 20 | 26/0.16 | 0.94 | 0.76 | 2.60 | 36.7 | |
| 22 | 17/0.16 | 0.76 | 0.76 | 2.40 | 59.4 | |
| 24 | 11/0.16 | 0.61 | 0.76 | 2.20 | 94.2 | |
